Eternity-IV TK Software (E4TKSC),  Heavy Duty

Technical Information     Installation     Non-Software Guide     Software Manual

Keypad: 12 numeric buttons
Access Type:
IButton or Key code
Set Up Method: Software or manually by keypad
Programming: iKeypad Lock Software or manually by using programming code
User Capacity: 800 with software / 300 with non-software
Power Supply: 4 standard AA batteries with 10,000 operations with low battery warning
Timed Operation: Time schedule for users as well as scheduled lock  automatic operations (example: auto-lock or auto-unlock at certain times)
Storehouse Mode or Classroom Mode: Yes, with Timed Operation
Audit Trail: Max 4000 records (Only with software model)
Finish: Satin Chrome
Handles: Field Reversible Lever
Key Bypass: Standard Schlage C6 or best SFIC (Special Order)
Door Preparation: Standard ANSI A115 Series Prep, modified by adding additional 3/8" through-bolt holes to add stability to the lock and increase security
Strike Plate: ANSI Standard 115.3. 1-1/8 x 2-3/4 inch T strike with 1-1/4 lip-to-center dimension
Latch: Tubular 2 3/4 inch backset standard (2 3/8 inch backset optional), solid brass with 1/2 inch throw. 1-inch diameter bore is required
Materials: Zinc Alloy
Accessibility Standard: Meets ADA standards (Americans with disabilities act)

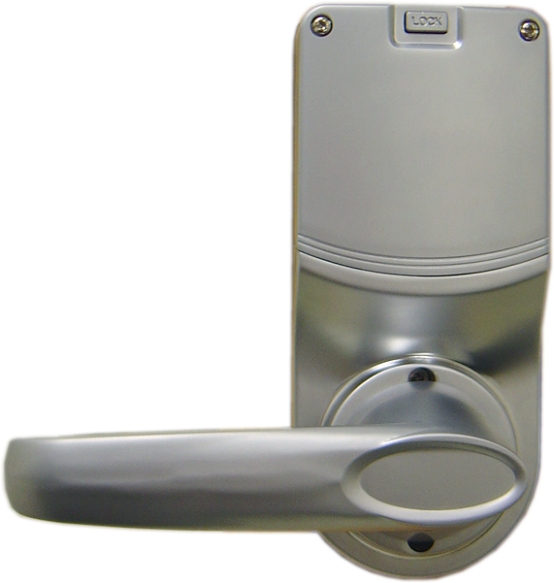

Back View
