Eternity-V (E5) RF / Keypad (E5RFKSC) medium duty, sheltered use

Technical Information     Installation     Non-Software Guide

RFID - Radio Frequency Identification

RFID card key, RFID key tag FOB, or Keypad user operation

Keypad: 12 numeric buttons, sheltered use only
Access Type: RFID or Keycode
Set Up Method: Manually by keypad
Programming: Manually by using programming code
User Capacity: 299
Power Supply: 4 standard AA batteries with 10,000 operations with low battery warning
Timed Operation: Time / day schedule for users as well as scheduled lock automatic operations (example: auto-lock or auto-unlock at certain times or days)
Storehouse Mode or Classroom Mode: Yes, with Timed Operation
Audit Trail: N/A
Finish: Brushed Chrome
Handles: Field Reversible Lever
Key Bypass: Standard Schlage C6 or best SFIC (Special Order)
Door Preparation: Standard ANSI A115 Series Prep, modified by adding additional 3/8" through-bolt hole to add stability to the lock and increase security
Strike Plate: ANSI Standard 115.3. 1-1/8 x 2-3/4 inch T strike with 1-1/4 lip-to-center dimension
Latch: Tubular 2 3/4 inch backset standard (2 3/8 inch backset optional), solid brass with 1/2 inch throw. 1-inch diameter bore is required
Materials: Zinc Alloy
Accessibility Standard: Meets ADA standards (Americans with disabilities act)

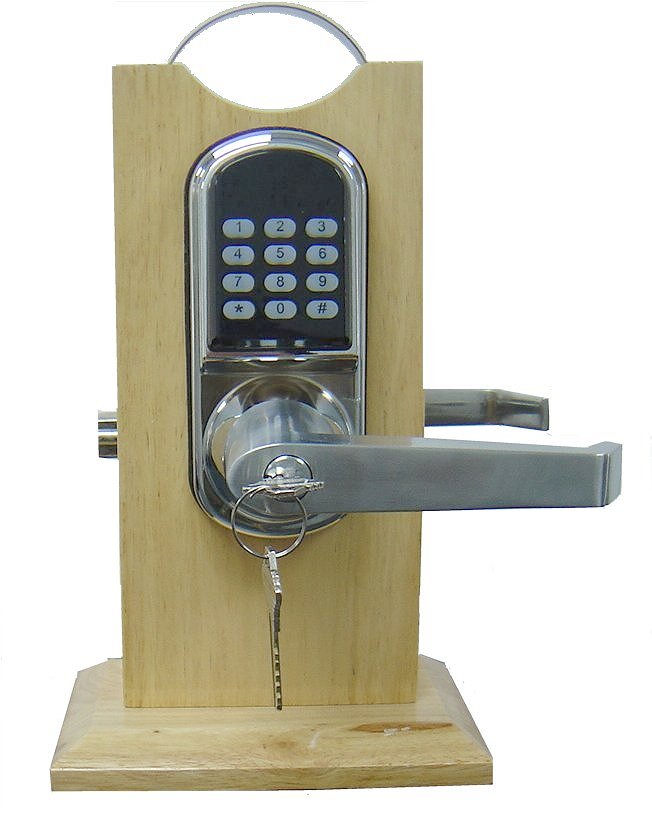

Front View

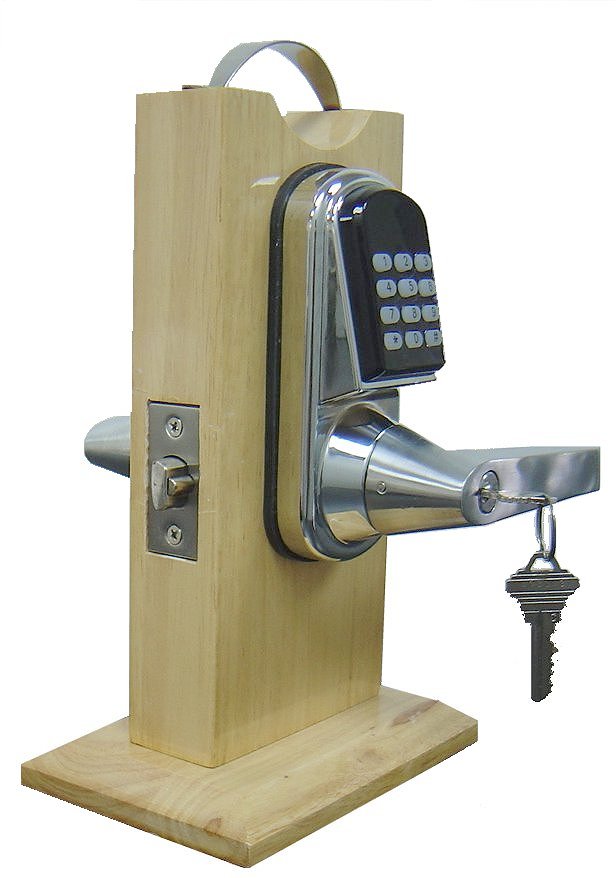

Side View
