Eternity Mortise latch - Available option for E4 and E5 locks

Technical Information     Installation

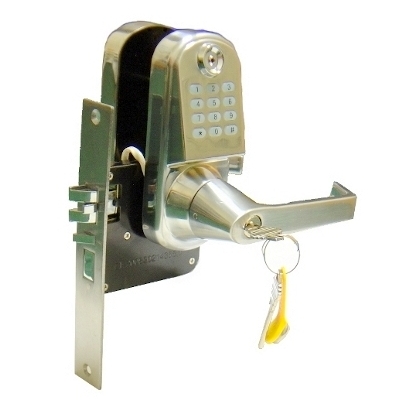

Mortise Type latch option, shown     here on an E5 lock.

E5 Mortise latchbolts can be fitted to any of the E5 model locks in the field, or ordered already equipped. The Eternity mortise latchbolt assembly must be ordered either left or right handed, depending on the door application. If in doubt as to which on you need, contact your dealer or Uaccess LLC technical support for advise.

E4 Mortise latchbolt assemblies can be fitted to E4 locks at the factory, but can not be easily retrofitted in the field. Any attempt to field modify an E4 lock for mortise latchbolt use will void the manufacturer warranty. If retrofit of an E4 lock is required, the lock should be returned to Uaccess LLC for modification. The Eternity mortise latchbolt assembly must be ordered either left or right handed, depending on the door application. If in doubt as to which on you need, contact your dealer or Uaccess LLC technical support for advise.

Finish: Stainless Steel
Door Preparation: Standard ANSI A115 Series Prep
Strike Plate: ANSI Standard 115.3. 1-1/8 x 2-3/4 inch T strike with 1-1/4 lip-to-center dimension
Mortise: 2 3/8 inch backset with heavy duty 3/4 inch throw deadbolt
Materials: Zinc Alloy
Accessibility Standard: Meets ADA standards (Americans with disabilities act)
